Description
The AMT U-2 Pangaea Ultima has 6 parameters that the user can modify: IR/Cab Sim FX, Modulation FX, IR Stereo Cab Sim, Stereo Delay, Stereo Reverb, Pre/Post FX
01: IR Cab Sim Fx The main firmware that comes with the device by default. A feature is an analog-digital preamp section with three channels: clean, low & high gain.
- Noise Gate (global setting)
- Compressor
- Analog Preamp (Clean / Low gain / High gain)
- Power Amp (9 types)
- IR cab sim (1 IR for both L/R channels per preset)
- Parametric Pre/Post EQ
- Hi/Low pass filters + Presence
- Delay or Reverb effect per preset
02: Modulation FX
- Noise Gate (global setting)
- Compressor
- Chorus
- Delay
- Flanger
- Chorus
- Delay
- Tremolo
03: IR Stereo Cab SimThe firmware that turns the device into a powerful stereo IR impulse responses cabinet emulator.
- IR Stereo cab sim (2 IR’s per preset: the first wav IR for the LEFT channel, another one wav IR – for the RIGHT channel)
- Parametric Pre/Post EQ
- Hi/Low pass filters + Presence
04: Stereo Delay Multifunctional STEREO IN/OUT Delay effect.05: Stereo Reverb Multifunctional STEREO IN/OUT Reverb with the following types:
- Gold Reverb
- Hall
- Room
- Plate
- Spring
- Gate
- Reverse
06: Pre/Post FX The firmware that turns the Ultima U-2 device to the PRE / POST effect processor.
PRE section:
- Noise Gate
- Compressor
- Phaser
- Flanger
POST section:
- IR cab sim (1 IR for both L/R channels per preset)
- Parametric Pre/Post EQ
- Hi/Low pass filters + Presence
- Delay or Reverb effect per preset
SPECS
IN L, IN R – Inputs of the Left and Right channels:
- input impedance 470 kОм
- rated input voltage of audio signal 0.316Vrms (-10dBV)
- maximum sinusoidal voltage 2.5V (+8dBV)
AUX IN
- Input impedance 2kOhm
- maximum sinusoidal voltage 0.85V (-1.4dBV)
OUT L, OUT R – Outputs of the Left and Right channels:
- output impedance 1,5kOhm (unbalanced output)
- maximum sinusoidal voltage 2,6V (unbalanced output)
- phantom power protection – present
PHONES – Output to headphones:
- minimum headphone impedance 32 Ohm
- maximum output sinusoidal voltage (no load) 2,6V (8dBV)
- output impedance 12 Ohm
POWER
- Voltage DC 12V
- Current consumption Approx. 300mA
- Power supply NOT included
CHARACTERISTICS OF IR FILES
- Type: WAV, IR A/D – D/A converters 24 bit
- Latency: 48 kHz
- IR length: 1024 samples (21.3 msec)
- S/N: 115dB
- Latency: 1.2 ms / 0.0012 s
- Codec: AD\DA AK4621
DIMENSION: (HxWxD) 47mm x 55mm x 95mm
WEIGHT: 270 g (without package)

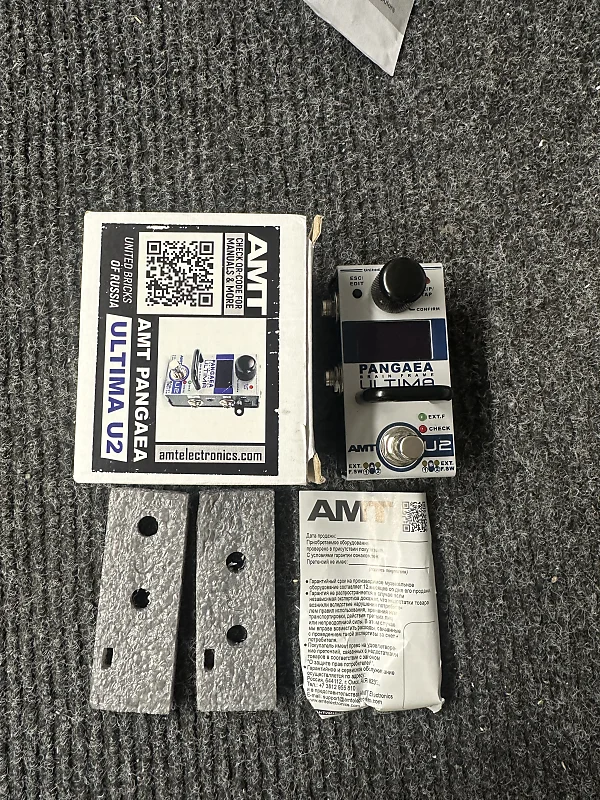

The AMT U-2 Pangaea Ultima is a hardware platform on which various guitar effects can be implemented by the pedal’s software. Changing the functionality of the device is carried out by changing the parameters of the device.
